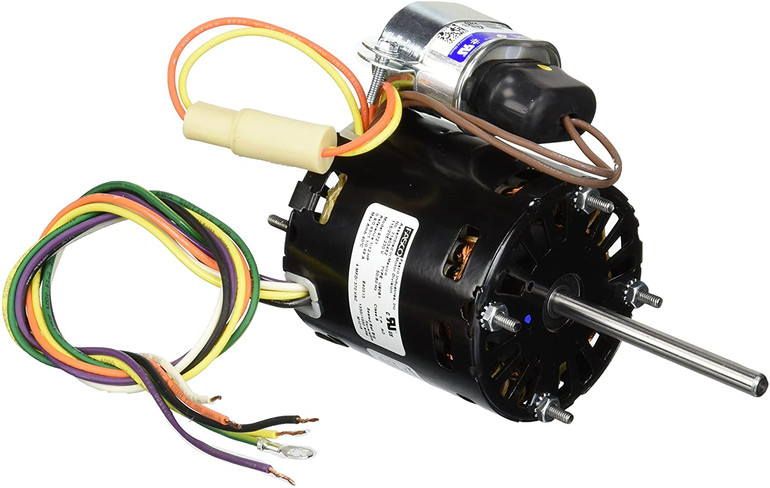

The Fasco 3-In-1 Replacement Motors
The Fasco 3-In-1 motor has a ball bearing installed to guarantee long life. They can deliver high power using very low energy, making them energy efficient. They are CSA/UL certified and come with multi-application evaporator fans to ensure that the coils and the compressor do not overheat.
The key features of a 3-In-1 replacement motor include;
- Their PSC design makes them energy-efficient.
- Their inbuilt ball bearing guarantees long life.
- They have an easy-to-read connection illustration on the lead wire.
- They are CSA/UL approved.
Fasco Shaded Pole Enclosed Air Over HVAC Motors
The Fasco Shaded Pole Enclosed Air over HVAC Motors have a sleeve bearing installed, making them have a smooth startup and are noiseless. The feature makes them ideal for use in bathroom fans and several hood blowers to guarantee performance with shock resistance. It also has a low starting torque and operates at a temperature of up to 40-degrees celsius.
Fasco Draft Inducer Blower
The Fasco draft inducers are replacements for Original Equipment Manufacturers (OEM) used in water heaters and furnaces. Here are some of the reasons why one needs to use the Draft Inducer Blower;
- It aids in returning the equipment to its fully operational.
- It meets the OEM requirements and possesses all the OEM specifications.
- It has a housing that withstands the compound chemicals in the flue gas that could be corrosive.
- It mounts appropriately and correctly on the OEM equipment.
- It eliminates the improper airflow rates that can negatively impact the pressure switch functionality.
Fasco C-Frame Motors
The Fasco C-Frame Motors, also known as Skeleton Motors, is a fractional horsepower, single phase, small induction motor used to power blowers and fans. They are the shaded-pole motor type that's an economical way of providing rotational movement. Its construction simplicity is achieved by allowing easy configuration to fit in most mounting arrangements.
Some of the key benefits of a C-frame Motor are;
- They are affordable.
- Their performance is highly reliable.
- Drop-in replacements for the majority of C-frame motors.
- They are versatile in application.
Here are some significant features of a C-Frame Motor.
- They have robust construction.
- The C-Frame Motor has up to 4 speeds.
- They are thermal protected.
- Their insulation is a class B and H.
- They have the ball-bearing, making them last longer.
Fasco Gear Motors
The Fasco gear motors are in two standard types, i.e., right-angle gear motors and inline gear motors. The right-angle gear motor uses bevel, worm, or hypoid gearing technology. On the other hand, the inline gear motor tends to use spur gears or the planetary gear, the standard technology type used in most gear motors.
The gear motors are available in the market as both AC and DC motor types making them versatile in application. They are commonly used in food and beverage equipment, automated doors, and robotic operations.
Since the gear motors are widely used, it's good to understand that some applications cannot use them. Some of the restricted applications of a gear motor is a high moving shaft like one found in fans, engine starters, and pumps. The restriction is because the gear motors tend to lower the speed for higher torque.
Fasco motors also produce blowers like the permanent split capacitor, the shaded pole, and the 3-phase specialty blowers most preferred for indoor furnace execution. The blowers and motors from Fasco are in the high and low-speed range. Their fragile nature makes courier delivery ideal compared to air freight shipping.
