It is important to know how your Fasco fan works. The more information you have on your fan, the easier it will be to fix any problem as soon as it arises. The Fasco fans may appear to be simple mechanisms, but there is more to them than meets the eye. There are well-known obvious parts of the fan that are seen on the surface.
However, some bits and pieces are tucked away and they can end up causing problems or need cleaning and repair from time to time. Knowing these parts of the fan can help you in fixing these issues by yourself. The Fasco fan parts are as follows:
Fan Blades
The blades are one of the well-known and easy to identify features of the Fasco fans. They are paddle-shaped objects that spin while moving air through the fan. They are angled in such a way that they can carry air from one point to another. Some models of the Fasco fans have a switch that allows you to control the direction of the airflow. On the other hand, the fans only blow air in the direction that which the angle of their blades is based.
Center Hub
The hub is located as in the name, at the center of the fan blades. This is the mechanism that connects the Fasco fan motor to the fan blades. Your fan cannot function without this as the blades and the rest of the fan would be two separate pieces. In other words, the center hub keeps everything together in the Fasco fan.

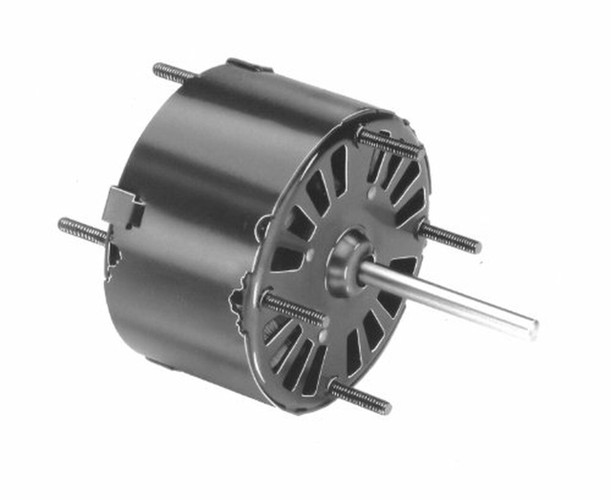

Fan Motor
The Fasco fan motor is the fan part that makes an electric fan function. Regardless of whether it's a ceiling fan, a window fan, a desk fan, a computer fan or an automotive fan, they require power to keep turning and moving air, which is typically produced by a motor.
Fasco fan motors are usually housed above the hub of the fan in a special motor housing. The box fans and desk fan motor housing units are located behind the hub.
Power Switch
Generally stating that electrical fans run on electricity may seem like an understatement. However, electrical components must be present for the fan to be able to function properly. When the power switch is flipped, it completes the circuit making it whole. Then the power can run from an outside power source to the motor. This further powers the fan and enables it to rotate. Not all fans have a switch at an obvious position.
Protective Guard
Fan guards protect both the fan and the user from any potential harm or damage. However, not all fans have a guard in them. The type of fans that contain a high probability of coming into contact with outside elements; including but not limited to vegetable matter, additional mechanical elements or the skin of the user will most likely have a guard. Fasco ceiling fans do not contain a guard since there is a very low chance of encountering a person or a random object. Automotive fans may or may not contain a protective guard as well, but it all depends on the make and model of the car and the function and location of the fan.
Fan Mount
The mount is typically the mechanism that keeps the fan where it is supposed to be positioned. Mostly, fans are mounted with the use of screws and brackets. This is regardless of whether it is to an engine, a computer processing unit (CPU), a ceiling or to the stand that is used to hold the fan.
Electrical Wiring
Without the wiring, a fan can in no way access or use electricity to its full potential. Therefore, it may have to rely on natural stimuli, such as wind, to move, which would be difficult to do when the fan is indoors or if it is inside the machinery. Wiring is what carries the electricity throughout the fan to the motor and to the blades to enable them to turn properly.
Bladeless Fans
There are newer fans on the market that are a little different from traditional fans and those are what are known as bladeless fans for the obvious reason that they lack fan blades. The bladeless fans, therefore, operate using newer technology that draws air into the machine and then sends it out using principles of low pressure. These then amplify the airflow for a bladeless fan experience.
How to Repair the Fasco Electric Motors
It is needless to say, the first thing to do would be to check if the equipment is plugged in and turned on. This should be done especially for large motors since there may be a gap between the power source and motor connections. The fuses and the circuit breaker have to be checked as well.
Another reason for the failure of the Fasco electric motors is damaged coils. The problem may be with the coil insulation which may cause a short. It's recommended to replace the coil in such a case.
For the DC motors, the commutator brushes usually get damaged when they begin wearing out. It is quite easy and cost-effective to replace these Fasco commutator brushes. Also, the permanent magnets can be upgraded to rare earth magnets for better performance of the units and replaced as well.
Problems with the bearing are usually evident when the Fasco electric motors make loud and odd noises. However, bearings can last years or they can be prone to damage almost instantly. Shut the motor down to avoid damage to the motor and the environment at large and have it inspected as well.
Benefits of Fasco Motors and Blowers
With time, you may have to replace a worn-out Fasco motor and Fasco blower.
In the process of finding the right motor that will be used for replacement, it can be quite difficult to find one that can lower costs, drive performance and come with pocket-friendly prices. It is highly recommended to consider Fasco motors and blower for the following reasons:
1. Better Performance
The Fasco fan blades are known to provide superior performance as compared to the fan blades of other brands. Smooth operation automatically means the elimination of any noise. This drastically improves the work environment.
2. Easy Mounting
The Fasco fan blades are made in such a way that they fit unit-bearing motors. They are also designed in such a way that they fit into bearing motors together with a shaft adapter. The Fasco fans are available in 3/16” to about 3/8” shaft diameters in 6”-12” fan diameters.
3. Good Fit
The Fasco motors and blades are made in such a way that they can fit under conditions where the fit might be a little tight. They are also made in a way that they can operate in two directions allowing for greater flexibility as well.
4. Energy Efficient
In particular, the Fasco Electronically Commutated Motor (ECM) is made to save energy when it is installed in heating and cooling systems. While energy is being saved, other costs are lowered as a result for the end-user. The carbon footprint created by the device is also reduced in the process. Essentially, an average consumer can save up to about 25% on the general annual operating costs.
5. Quieter Operation
Fasco motors operate quietly due to the thickness of the blades. The size of the blades can dampen vibrations which would eventually be transferred to the air stream. Maintaining a quieter work environment is important since it ultimately reduces the risk of safety hazards.
In conclusion, Fasco motors are perfect for all the HVAC systems. Consider them when trying to choose a part for repair or replacement since they are energy-efficient, quiet during operations and they are a tight fit as well.
