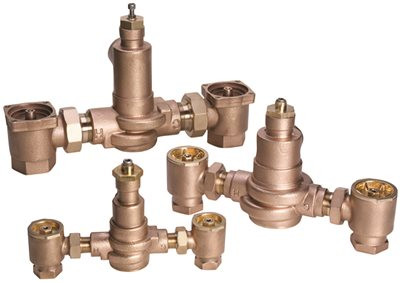

POWERS 2470357 PROCESS CONTROLS Thermostatic Mixing Valve, 1-1/4" x 1-1/2", Rough Bronze

POWERS THERMOSTATIC MIXING VALVE, 1-1/4 IN. X 1-1/2 IN., ROUGH BRONZE, LEAD FREE| Valve utilizes paraffin-based advanced thermal actuation technology to sense and adjust outlet temperature | Dirt and lime resistant poppet and seat design | Virtual shutoff if supply pressure fails | Vandal-resistant locking mechanism to secure temperature setting | Factory tested | Rotatable union triple-duty check stops | Rough bronze finish | Connections 1-1/4" inlets x 1-1/2" Inlet | Maximum hot water supply temperature 200 F | Minimum hot water supply temperature (with equal pressure) 5 F above set point | Minimum flow 0.5 gpm (when valve is installed at or near hot water source with re-circulated tempered water with a properly sized continuously operating re-circulating pump) | Maximum operating pressure 125 psi | Temperature adjustment range standard 90 -160 F and low 60 - 90 F | Hot water inlet temperature range 120 - 180 F and cold water inlet temperature range 40 -80 F | Flow capacity at 50-50 mixed ration | Minimum Flow to ASSE 107 7 gpm | 21.50 Cv | Pressure Drop Across Valve at 5 psi 48 gpm, at 10 psi 68 gpm, at 20 psi 96 gpm, at 30 psi 118 gpm, at 45 psi 144 gpm, at 60 psi 167 gpm, at 70 psi 180 gpm | ASSE 1017 | CSA B125
