Link Pro battery monitor, MFG# 84-2031-00, Cable not included. See also connection kit 854-2021-01 that has a 15m cable.

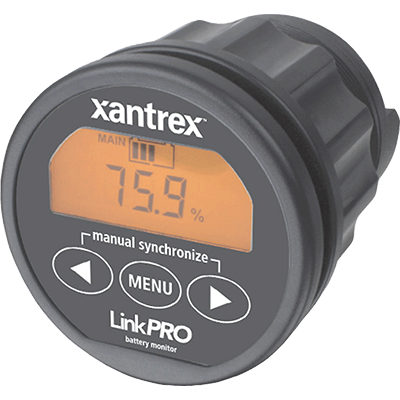

Xantrex Link-Pro Battery Monitor, MFG# 84-2031-00. Displays voltage, current, consumed amphours and remaining battery capacity. Stores a wide range of history events in internal memory. Note: This is the monitor only no cable included.
The Xantrex Link Pro battery monitor, model 84-2031-00, is a dedicated battery monitoring system. It provides both 12V and 24V monitoring for use with generators, wind and solar power systems.
The Xantrex LinkPRO Battery Monitor (Model No. 84-2031-00) accurately calculates the charge required to recharge any 12-V lead-acid battery from a wide range of input current sources including solar panels and wind generators. It also monitors the output of multiple charging sources by providing a sum-of-charge total of the batteries that are being recharged. The monitor is compatible with all Xantrex PRO, and Classicmate solar charge controllers.
Monitor multiple batteries by installing two 8 input Link Pro monitors. Both displays from the original monitor can still be used, giving you a total of 16 battery gauges to monitor on a single display platform. Using multiple Link Pro displays is ideal for larger arrays where current capabilities are high and voltage levels are low.
The LinkPro battery monitor's rugged die-cast aluminum case is made for the marine environment. With an enclosed microprocessor and unique bump guard protection, the LinkPro is designed to survive on-board vibrations, extreme heat and cold, moisture, and other harsh conditions. The internal memory can store up to 300 event messages for 12 measurements every 15 minutes, so you can see longer term trends such as voltage recovery after a discharge or load cycle. Detects more than 22,000 total banks of batteries using MultiConnect technology. Voltage readout with settable ranges 0-150VDC and 150-400VDC .
Simply install the Link Pro into an existing battery circuit, and when it is connected to a DC load, the Link Pro will measure your battery's voltage, current in and out, consumed amperage and remaining capacity. The Link Pro stores a wide range of history events in its internal memory, so you can view collected data over time.
The LinkPRO Battery Monitor is the only battery monitor in North America that combines an 800-Amp continuous battery meter with a microprocessor for calculating remaining battery capacity and history tracking.
Free Shipping
In stock
