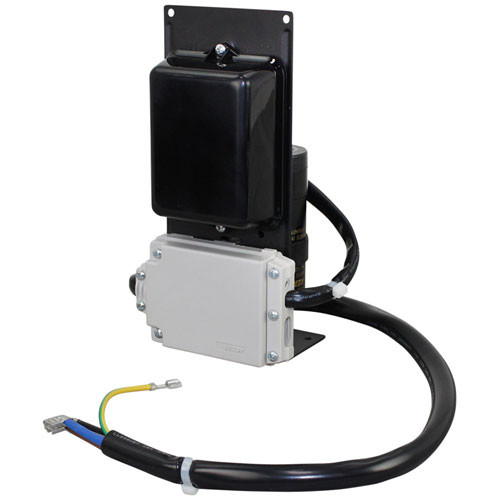

CAPACITOR ASSY -START/RUN for Delfield - Part# 3516468

CAPACITOR ASSY -START/RUN for Delfield - Part# 3516468

The CAPACITOR ASSY -START/RUN for Delfield - Part# 3516468 is suitable for use on MODEL : CS6130CS,CS6135CS,CS6230, CS6235UP,CS6240CS, and CE6239S.

This CAPACITOR ASSY -START/RUN for Delfield - Part# 3516468 is the factory replacement part offered by the manufacturer, and is not covered under any warranty.

Part# 3516468 Capacitor Assembly Start/Run 35-amp 2-pin blade terminal 5/38

The Capacitor ASSY -START/RUN is used with the following models: RMRDD46AAD RMRDD50AAD RBPD40BAAAA RBPRD36AAD RBPS20AAD

The Start/Run Capacitor is an optional charge item #3516468. This part is used to replace a faulty or defective Capacitor. The Start/Run Capacitor is located at the top of the condenser coil on the compressor side of the Refrigeration system.

This start/run capacitor was designed specifically for Delfield refrigerators. This is a direct replacement for the original equipment and has a 3-1/8" Outside Diameter x 2-7/8" Inside Diameter x 1-1/32" Thick with a 0.253" Copper Wire Lead.

To run the unit, the start/run capacitor is bolted to the compressor motor and screws directly into the main power line (hot). The start/run capacitor controls the initial surge of current to the compressor motor. After the motor builds up to its normal running speed, the start/run capacitor is not needed and it will gradually discharge itself of any remaining energy.
