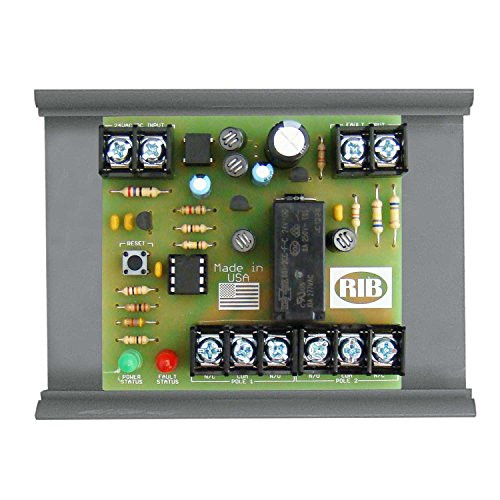

Functional Devices RIBMNLB-1 | FDI | Panel RIB logic board, 1-input 2.75

logic board 1 NC input w/track

The Functional Devices FDI RIBMNLB-1 Panel Logic Board is a genuine OEM part. The logic board 1 NC input w/track is used in many of the company's products and is compatible with its NEMA 4X and NEMA 1 enclosures.

Panel mountable FDI RIB for 1 NO and 1 NC or 2 NC input with selectable track.

The RIB logic board and the 1-input 2.75 logic board provide full logic input and output capability to activate relays or track a pilot light, sounder, or other device. The logic board provides the control wiring, circuit protection, overload protection, relay drivers, and relay activation control for complete relay switching or pilot light tracking applications.

The FDI system contains the logic board, the input track, and the bus bar. The logic board has three dip switch positions: off-normal-on. The onboard LEDs display the dip switch status. The dip switches are factory set to the off position. When you turn on the controller power, the LEDs will be OFF if all three dip switches are set to OFF. If you press a button on an input track the LEDs will blink ON. The ON state is used to indicate that there is a valid transition from OFF to ON on this particular input line (i.e., signal paced from an external device).

The RIBMNLB-1 | FDI | Panel RIB Logic Board is a 1-to-2 isolator switchboard.

The RIB logic board is a cost effective, multi-application panel which can be programmed as either an input only device or combination output and input logic board with jumper selectable.

The RIB miniature logic board is a custom-designed interface to make it easy to attach switches and sensors. The RIB logic board is compatible with the following input/output (I/O) options: momentary switches, digital valves, proximity sensors, and photo sensors.
