Some of the features of these Fasco motors include:

• Ball bearing that provides a dependable long life.
• Mount by Fasco 3.3” belly band kit or four studs on each end that are supplied with mounting nuts.
• A reversing plug.
• Easy-to-read connection diagram that is attached to a white lead wire.
• Saves energy.
• Multi-application evaporator fans.
• UL and CSA recognized.

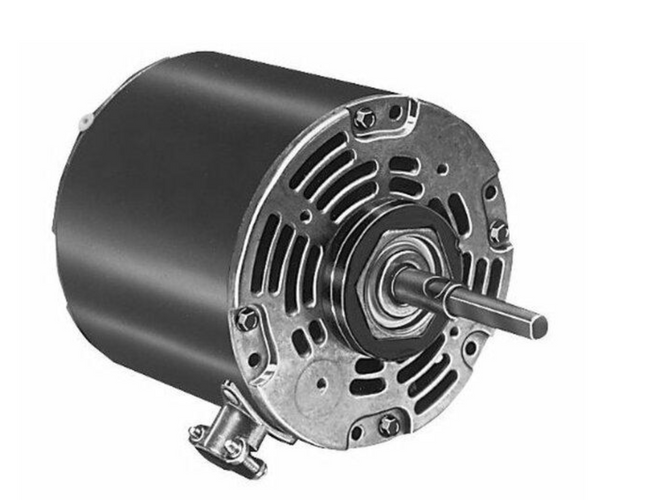

Fasco 9721 3.3 Inch Diameter Motor 115/208-230 Volts 1550 RPM

The stock number 9721 is a new replacement that is about 3.3”. The Permanent Split Capacitor has a ball bearing, reversible, dual voltage motor that will eventually replace hundreds of OEM shaded pole evaporator fan motors that are found in heatcraft, Bohn, Chandler, Climate control as well as other refrigeration equipment.

The Fasco PSC motor design allows the motor to deliver more power even with a lower amp draw. Cooler operations reduce the amount of failures. Fasco shaded pole motors that are less efficient are used in the original equipment in order to reduce costs. The Fasco shaded pole motors eat up those very savings, especially with today’s high power costs. You will be able to use the Fasco 9721 motor as a retrofit to replace the shaded pole OEM motors and is able to save the user up to 50% in the use of energy.

The stock number 9721 for Fasco is designed as a 3-in-1 multi-horsepower motor, which enables it to replace the 1/12, 1/15, 1/20 horsepower, Fasco PSC motor and less-efficient shaded pole designs. By stocking the 3-in-1 design, the refrigeration may be able to do the following:

1. Reduce the amount of unnecessary trips it takes to and from a distributor.
2. Reduces the long drive times that may be needed to replace the Fasco motors.
3. Eliminate the temporary Fasco motor substitutions for the units.
4. It helps reduce the truck-stocking costs.
5. There is an increase in the billable time.
6. This motor enables households to save energy.
7. The Fasco 9721 motors have multi-application evaporation fans.
8. The PSC design is energy efficient.
9. The ball bearing has a completely dependable long life.
10. These Fasco motors have a belly band, four studs on each end and are supplied with mounting nuts. They also contain a reversing plug.
11. The connection diagram is quite easy to read. This diagram is usually attached to a white lead wire.
12. The Fasco 9721 motors are UL and CSA recognized.

Specifications to the Fasco 9721 wiring diagram:

Motor Voltage: 115/208 - 230

Ambient Temp.: 40°C

Amps:0.9/0.43/1.1/0.49

Brand: Fasco

Bearings: Ball

Country of Origin: MEXICO

Diameter (in inches): 3.3

Enclosure: Open

H.P.: 1/12

Hertz: 50/60

Includes: Reversing plug

Length Less Shaft (in inches): 3 5/8

Material: Steel

Motor Rotation: Reversible

Motor Type: PSC

Mounting Option: Extended Studs

NEMA Frame: 3.3

Overload Protection: Thermally Protected

Phase: Single

RPM: 1550

Service Factor: 1.00

Shaft Dimensions (in inches): 5/16 x 3 1/4

Speeds: 1

UPC: 815585020578

Voltage: 115/208 - 230

The Fasco 9721 motor is the direct replacement for:

Bohn (25309101), Emerson (9656), Emerson (9664) or the Heatcraft (7071061).

Benefits of the Fasco 9721 Wiring Diagram

1. Reduces unnecessary trips to a distributor.
2. Gets rid of the temporary motor substitutions.
3. Immensely reduces truck-stocking costs.
4. Increases the amount of billable time.

Find more Fasco products here!
