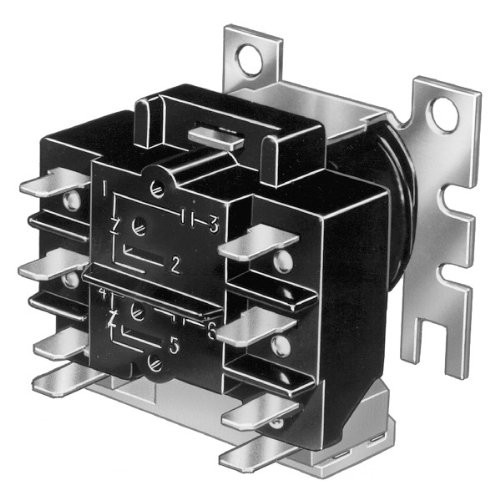

Honeywell 2636 General Purpose Switching Relay, DPDT Pilot Duty Switching.

DPDT PILOT RELAY,24V AC,DOUBLE QC COIL

The general purpose DPDT ON-OFF-ON, pilot duty switching is a double coil, 24V AC relay. Used to control solenoids, pilot lights, motors etc. Features and Benefits: Double coil relay for pilot duty application; 240 VAC, 24 VAC and 12 VDC coil operating voltage; High reliability construction to provide long service life and low failure rate; High dielectric strength in order to prevent burn-out of the PCB traces & connectors; UL 94V-0 flame retardant thermoplastic housing for all panel mount models (except 245/257 series).

The HONEYWELL-US818D24RP1 is a double-pole, single throw switch. The DPDT pilot relay has spring-loaded contacts to keep them from bouncing on contact opening.

For switching applications in 24V AC systems the General Purpose Relay is designed with a number of features including a micro-switch actuator and double pole, double throw (DPDT) contacts. The contacts can be operated with low coil current loads, typically around 0.3A and are capable of handling 24V AC loads up to 3A, or 28V DC loads up to 2A.

This double pole, double throw (DPDT) relay is designed to switch electrical power for small loads. The SPDT relay has four terminals. When the coil is energized, the normally-open contact of one pole will close. When the coil current is interrupted, that contact will open. The coil should be de-energized before changing connections to prevent damaging the contacts.

This general purpose pilot duty switching relay can be used to control a variety of AC and DC loads where automatic adjustment of the load's state is needed.

With up to 24 V AC/DC coil voltage, the Honeywell 2636 general purpose switching relay makes connections for pilot-duty switching applications. It features a disconnect (test) position that isolates contacts without deenergizing the power supply. Its open design is ideal for use in high-temperature environments, or for mounting close to sources of heat.

This 2 Line/12 Position Relay Is A Pilot Duty Ideal For Use In A Variety Of Applications. Movable Contacts Can Be Actuated By Transformer, Solenoid Or Other Control Device.
