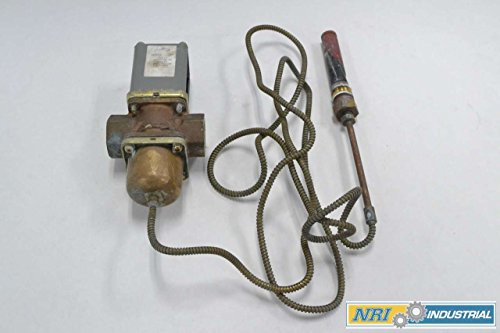

Johnson Controls V47AC-3 115/180F 3/4 IN NPT THERMAL EXPANSION VALVE B349556

"3/4""TEMP.ACTUATED VLV.115/180F"

Johnson Control's V47AC-3 115/180F 3/4" Thermal Expansion Valve, designed for two-stage and single-stage gas and oil burner systems. Regulates the temperature of hot water to radiators, baseboard heaters and hydronic heating systems. The flow control valve maintains high or low setpoint water temperatures by controlling the volume of gas or oil that is burned at the furnace.

The Johnson Controls V47AC-3 115/180F 3/4 IN NPT THERMAL EXPANSION VALVE is an expansion valve sold under part number B349556 and has a diameter of 1.7""." This product weighs 54 lbs.

Engineered for commercial applications, the Johnson Controls V47AC-3 115/180F 3/4" Thermally Actuated Expansion Valve features a manually adjusted spool to control temperature. It is designed for use in applications such as domestic hot water heating systems and small commercial systems.

The Johnson Controls V47AC-3 is a 3/4 inch thermal expansion valve for water operating at a temperature controlled range of 115/180F. The Johnson Controls V47AC-3 Expansion Valve is constructed with brass and is UPIC Approved

The V47AC-3 is a 3/4" thermal expansion valve designed to control 115 or 180F R-22 system liquid lines. It will trip when the temperature approaches 180F and reset when the temperature drops below 115F. The V47AC-3 is a normally open, pilot controlled, spring return valve.

B349556, V47AC-3 ,Thermocompressors, VLV

Temperature-activated valve with diaphragm type actuator.
